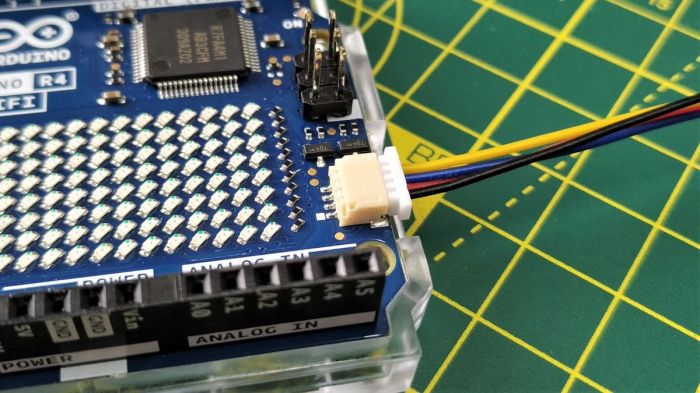

Arduino Uno R4 Microcontroller – Embedded Hardware Guide is your ultimate resource for mastering the innovative world of the Arduino Uno R4. This powerful microcontroller stands out with its advanced features and specifications that surpass its predecessors, making it an essential tool for hobbyists and professionals alike. Dive into the incredible architecture that powers this device, and unlock your potential to create amazing projects.
Whether you’re a beginner eager to embark on your first project or an experienced developer looking to expand your skills, this guide will provide everything you need to get started. From setting up your Arduino Uno R4 to exploring its programming basics and advanced capabilities, we’ve got you covered. Discover the myriad possibilities that await you with this cutting-edge microcontroller.
Introduction to Arduino Uno R4 Microcontroller: Arduino Uno R4 Microcontroller – Embedded Hardware Guide
The Arduino Uno R4 represents a significant advancement in the Arduino Uno series, renowned for its user-friendly interface and versatility in embedded projects. With the R4 model, Arduino has embraced contemporary demands for performance and connectivity, making it an essential tool for makers and professionals alike. This evolution builds upon the established success of its predecessors, incorporating modern specifications and features that enhance functionality while maintaining ease of use.
The Arduino Uno R4 boasts a robust microcontroller architecture that supports enhanced processing capabilities, increased memory, and a variety of input/output options. Key specifications that distinguish the R4 include an upgraded processor, improved analog input resolution, and support for more communication protocols. This generation is specifically designed to cater to both novice users and advanced developers, allowing for a broad spectrum of applications in IoT, robotics, and automation.
Getting Started with Arduino Uno R4
Setting up your Arduino Uno R4 for the first time is straightforward, making it ideal for beginners. To embark on your journey, you’ll need a few essential tools and components to ensure a smooth start. Here’s what you will require:
- Arduino Uno R4 board
- USB cable for connection
- Computer with the Arduino IDE installed
- Basic electronic components (LEDs, resistors, etc.)
To begin, download and install the Arduino IDE from the official Arduino website. Once installed, connect your Arduino Uno R4 to your computer using the USB cable and open the IDE. Select the correct board and port from the tools menu to configure the software for your new microcontroller. This simple setup process allows you to dive straight into programming and experimentation.
Programming Basics for Arduino Uno R4
An Arduino sketch, the program you will upload to your Uno R4, consists of two primary components: the setup function and the loop function. The setup function initializes variables and settings, while the loop function contains the code that runs continuously. Here’s a basic sketch demonstrating how to blink an LED:
“`cpp
void setup()
pinMode(LED_BUILTIN, OUTPUT); // Initialize the LED pin as an output
void loop()
digitalWrite(LED_BUILTIN, HIGH); // Turn the LED on
delay(1000); // Wait for a second
digitalWrite(LED_BUILTIN, LOW); // Turn the LED off
delay(1000); // Wait for a second
“`
Uploading code to your Arduino Uno R4 is as simple as clicking the upload button in the Arduino IDE. The IDE compiles your sketch and sends it directly to the microcontroller, allowing you to see your code in action in no time.
Input and Output Capabilities
The Arduino Uno R4 features a versatile range of input and output pins that enable users to connect various sensors and actuators. These pins can be configured for digital or analog input/output, providing flexibility for different projects. The pin configuration and their corresponding functions are summarized in the following table:
| Pin Number | Function |
|---|---|
| 0-13 | Digital I/O pins |
| A0-A5 | Analog input pins |
| GND | Ground pins |
| 5V | Power output (5V) |
| Vin | Voltage input for external power |
Connecting sensors or actuators to the R4 is straightforward. For example, to connect a temperature sensor, simply wire it to one of the analog input pins and use the appropriate library to read its values.
Advanced Features of Arduino Uno R4, Arduino Uno R4 Microcontroller – Embedded Hardware Guide
The Arduino Uno R4 is equipped with advanced communication protocols, including I2C, SPI, and UART, enabling seamless integration with other devices and modules. Utilizing these protocols allows developers to expand their projects significantly. For instance, I2C can be used to connect multiple sensors to the same bus, simplifying wiring and enhancing functionality.
Additionally, the R4 offers power management features that provide options for powering the board, including USB power and external battery sources. This versatility ensures that your projects can be mobile or stationary according to your needs, making it adaptable for various applications.
Project Ideas Using Arduino Uno R4
The possibilities with the Arduino Uno R4 are virtually endless. Here are some beginner-friendly project ideas to get you started:
- Simple LED Blink Project
- Temperature and Humidity Monitor
- Home Automation System
- Basic Robotics with Motors
For a specific project, let’s consider building a temperature and humidity monitor. You’ll need a DHT11 sensor, an LCD display, and a breadboard. Start by wiring the DHT11 sensor to one of the digital pins and the LCD to the appropriate I2C pins. Write a sketch that reads the sensor values and displays them on the LCD, allowing real-time monitoring of your environment.
Troubleshooting Common Issues
While working with the Arduino Uno R4, users may encounter common issues such as upload errors, unresponsive boards, or incorrect readings from sensors. Here are some troubleshooting steps to resolve these problems:
- Verify the correct COM port is selected in the Arduino IDE.
- Check connections and ensure all components are properly wired.
- Reset the board by pressing the reset button.
- Update the Arduino IDE to the latest version for compatibility.
Preventive maintenance is crucial; always ensure your board is powered correctly and avoid exposure to moisture to prolong its lifespan.
Expanding Functionality with Shields and Modules
Arduino shields are additional boards that can be stacked on top of the Arduino Uno R4 to enhance its functionality. Some popular shields include the Ethernet Shield for network connectivity, Motor Shield for controlling motors, and the LCD Shield for displaying information.
Integrating external modules and libraries can further expand the capabilities of your projects. For instance, by adding a Wi-Fi module, you can connect your Arduino to the internet, enabling remote control and monitoring capabilities.
Community and Resources
The Arduino community is vast and supportive, filled with valuable online resources, forums, and groups dedicated to sharing knowledge and projects. Websites like Arduino.cc, Instructables, and GitHub are essential platforms where you can find tutorials, libraries, and project ideas.
For further learning, consider exploring recommended books on Arduino programming and electronics. Engaging with the community not only enhances your skills but also contributes to the evolving landscape of open-source projects, fostering innovation and collaboration within the Arduino ecosystem.
